SD-6200 Spary Booth

【 Size:Large Medium Small
2017-11-01 00:28:28  Views : 8198

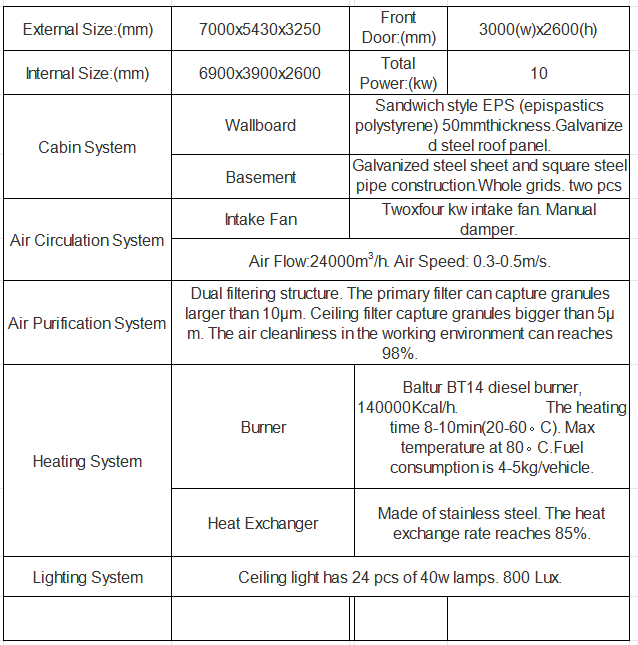

External Size:(mm)

7000x5430x3250

Front Door:(mm)         Galvanized Steel Frame

3000(w)x2600(h)

Internal Size:(mm)

6900x3900x2600

Total Power:(kw)

10

Cabin System

Wallboard

Sandwich style EPS (epispastics polystyrene) 50mmthickness.Galvanized steel roof panel.

Basement

Galvanized steel sheet and square steel pipe construction.Whole grids. two pcs of ramps.

Air Circulation System

Intake Fan

Twoxfour kw intake fan. Manual damper.

Air Flow:24000m3/h. Air Speed: 0.3-0.5m/s.

Air Purification System

Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

Heating System

Burner

Baltur BT14 diesel burner, 140000Kcal/h.                      The heating time 8-10min(20-60C). Max temperature at 80C.Fuel consumption is 4-5kg/vehicle.

Heat Exchanger

Made of stainless steel. The heat exchange rate reaches 85%.

Lighting System

Ceiling light has 24 pcs of 40w lamps. 800 Lux.
