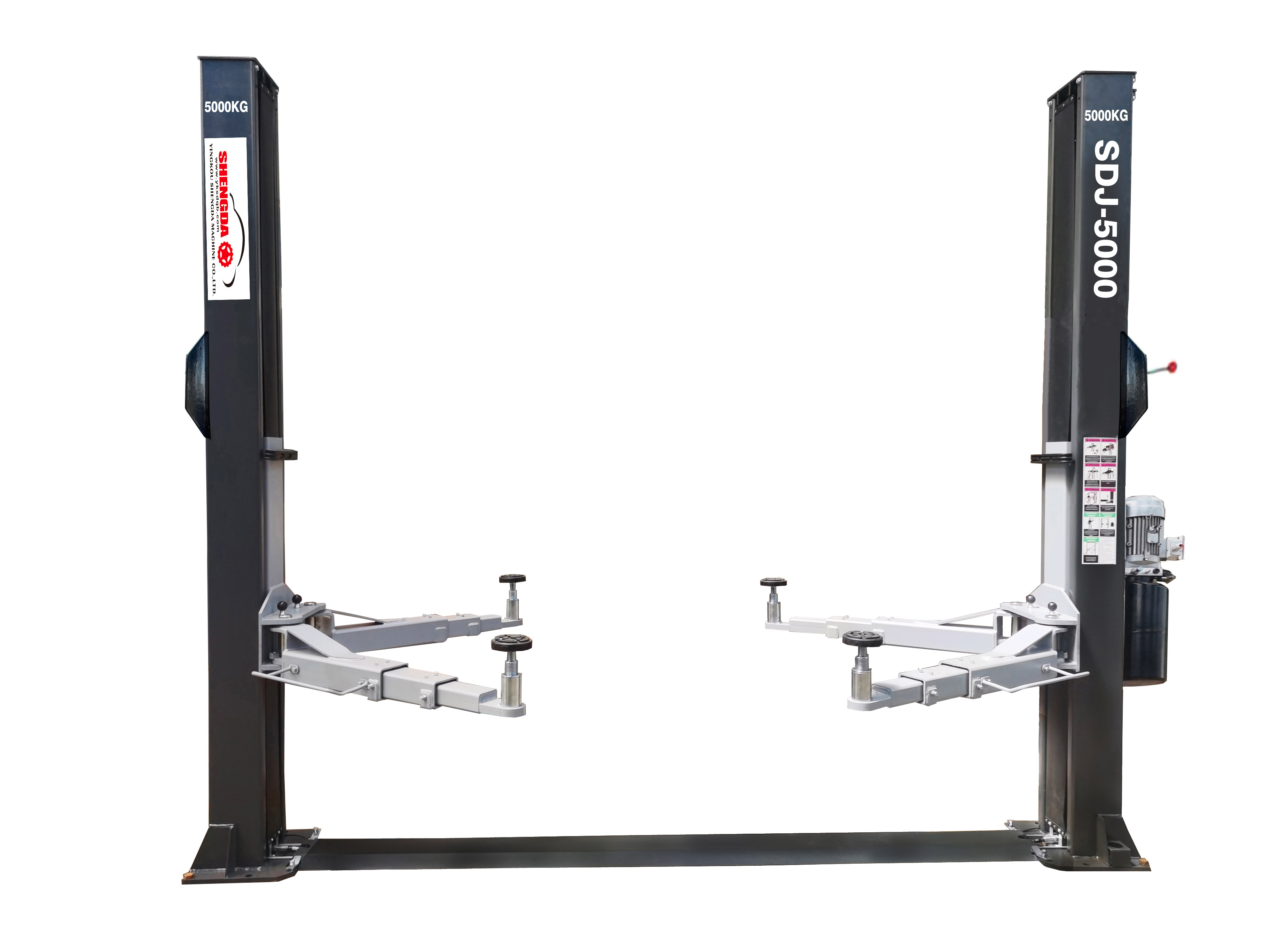

Main Features:
1. Max lifting capacity 5000kg
2. 4*3steps arms max 1800mm length
3. The columns thickness is 6mm
4.Single sides release Lock.
5.Door Opening protection rubber avoid damages.
6. Limited switch for max height automatic stop.
7.Optional foot protection design on arms .
8.Optional electric control box operation .
9.optional Electric Lock
|
Standard features |
SDJ-5000 |
|
Capacity |
5000Kg |
|
Maximum lifting height |
1900mm |
|
Minimum height |
110mm |
|
Overall width |
3950mm |
|
Overall height |
2920mm |
|
Lifting time |
45s |
|
Lowering time |
45s |
|
Motor |
2.2KW 220V/380V |
|
Net weight |
800Kg |
|
Gross weight |
825Kg |
|
Oil pressure |
20Mpa |
|
Oil tank |
10L |
|
Distance between posts |
3400mm |
|
Noise |
<70dB |
|
Arm |
Asymmetrical |
|
Packing |
2900*520*750mm 820*340*360mm |
