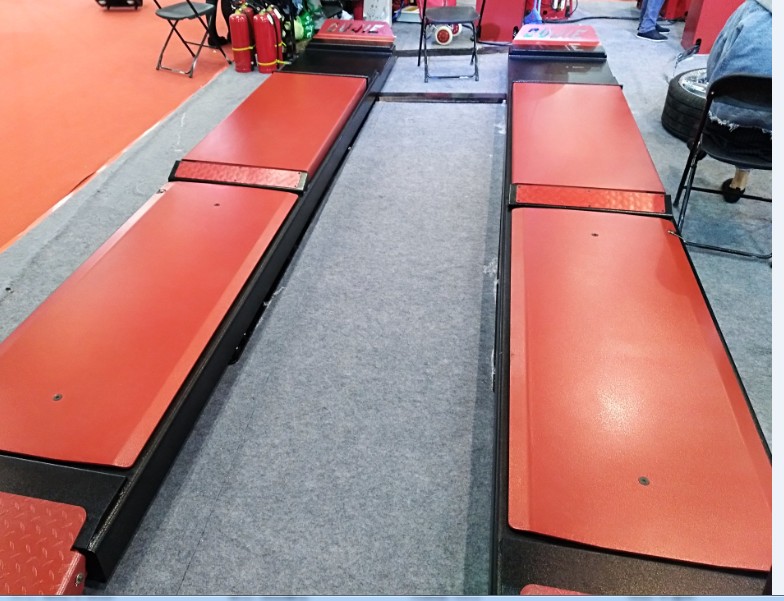

OJ-550 Super Thin Alignment Scissor Lift
Standard Features:
1. This Lift is suitable for on ground ,And It with second jacks middle of platform.
2. Machine is Pneumatic release Lock.
3. Integrated circuit design to protect the device stability.
4. Lifts with Explosion-proof valve for hydraulic systerm.
5. Hydraulic system synchronization control ,high precise.
6. Suitable to all kinds of turntable plates.
|
Standards Features |
OJ-550 |
|
Lifting Capacity |
5500KG |
|
Lifting Height |
200-1800MM+450mm |
|
Platform Length |
4500MM/4800mm |
|
Single Platform Width |
700MM |
|
Space Between Platforms |
800MM |
|
Overall Width |
2200MM |
|
Lifting Time |
50s |
|
Net Weight |
2250KG |
|
Gross Weight |
2300KG |
|
Rated Voltage |
220V/380V |
|
Packing Size |
4800*600*280mm*2pcs 500*400*1000mm |
