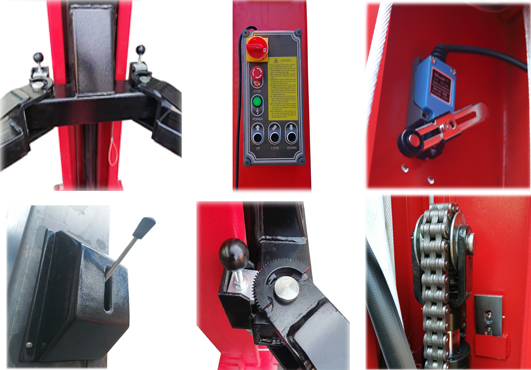

Products Feature
1.Door Opening protection rubber avoid damages.
2. Limited switch for max height automatic stop.
3. 4*3 steps arm design in suitable for different length adjustment.
4.Optional automatic release lock.
5.Optional foot protection design on arms .
Standard features
SDJ-5000E Automatic Release Lock Two Post Lift
Capacity
5000Kg
Maximum lifting height
1900mm
Minimum height
110mm
Overall width
3950mm
Overall height
2900mm
Lifting time
45s
Lowering time
45s
Motor
2.2KW 220V/380V
Net weight
800Kg
Gross weight
825Kg
Oil pressure
20Mpa
Oil tank
10L
Distance between posts
3300mm
Noise
<70dB
Arm
4*3steps arms
Packing
2900*520*750mm
820*340*360mm
