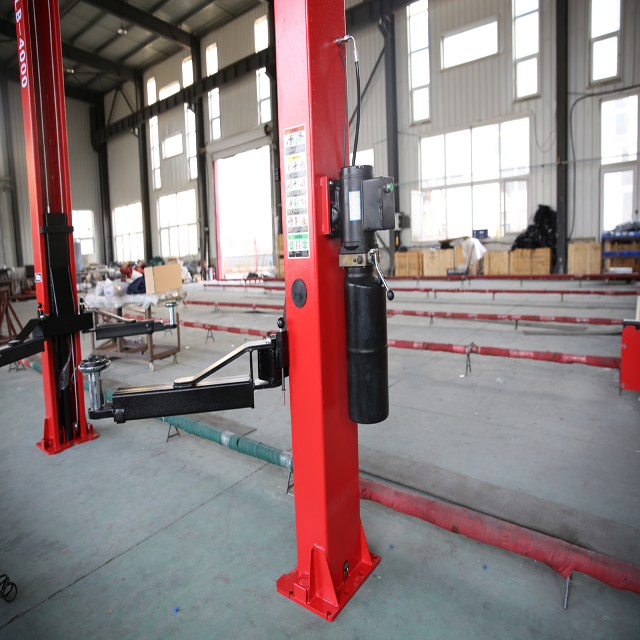

SDL-4000 Clear Floor Two Post Lift Manual Lock
Main Features:
1. Handle manual release Lock.
2.Door Opening protection rubber avoid damages.
3. Limited witch for max height automatic stop.
4.Optional 3 steps arm design in suitable for different length adjustment.
5.Optional foot protection design on arms .
6.Optional electric control box operation .
|
Standard Features |
SDL-4000 |
|
Lifting Capacity |
4000kg/5000kg |
|
Maximum Lifting Height |
1900mm |
|
Minimum Height |
110mm |
|
Column Height |
3880mm |
|
Rated Voltage |
220V/380V |
|
Net Weight |
600Kg |
|
Gross Weight |
620Kg |
|
Column Width |
2820mm/2850mm |
|
Packing Size |
4000*580*710mm 920*340*360mm |
