Standard Features：

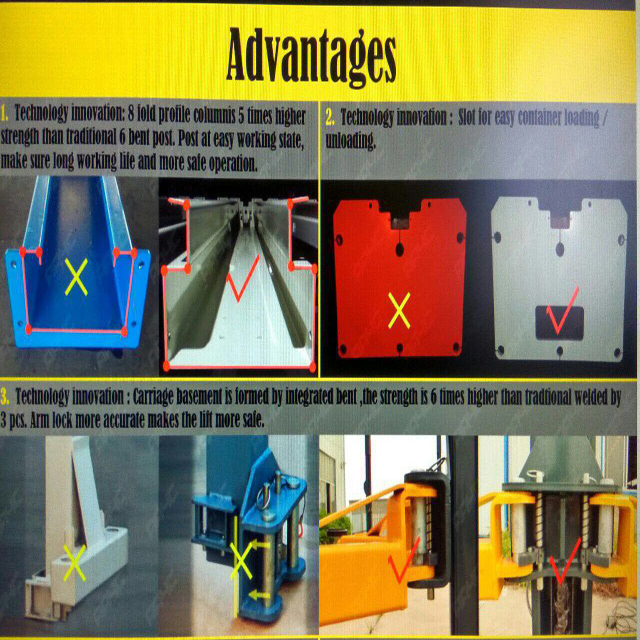

1.It is 8 Bend Pillars,It is more strong .
2.It is Bend Plate Carriage
3.It is could optional 24V control box
4.It is with protect feet tool box.
|
Standard features |

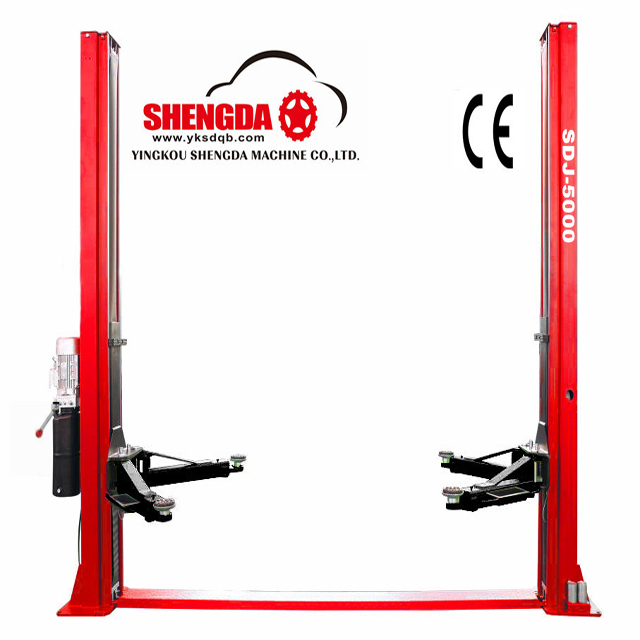

SDJ-5000 (E) |
|
Capacity |
4500Kg |
|
Maximum lifting height |
1800mm |
|
Minimum height |
105mm |
|
Overall width |
3426mm |
|
Overall height |
2895mm |
|
Up/down Work time |
45s |
|
Motor |
2.2kw,220-415V50/60Hz |
|
Net weight |
580Kg |
|
Gross weight |
650Kg |
|
Oil pressure |
20Mpa |
|
Oil tank |
10L |
|
Distance between posts |
2800mm |
|
Noise |
<70dB |
|
Arm |
760*1250 -2 step arms*4pcs |
|
Packing |
2900*500*700mm 820*340*360mm |
|
FCL |
30pcs/20’’ 48pcs/40’’ |
