1. Tire Changer Head with Helper Arm

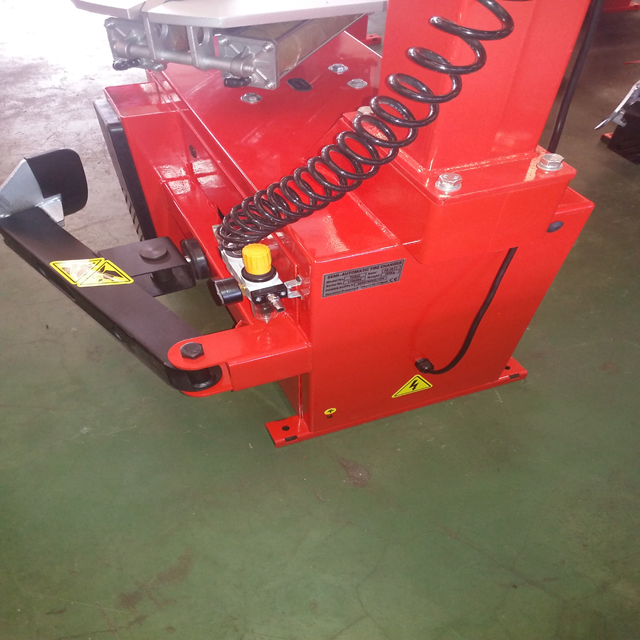

2. Aluminum bracket pedal assembly, unique structure ,exquisite and durable, convenient repair
3. S41 enhanced mounting bar provide long time and high strength service without any mechanical de formation
4. Enhanced inner box structure provide long time and high strength service without any mechanical deformation
|
Technical data: |
OJ-825 |
|
Rim clamping from outside |
12"-22" |
|
Rim clamping from inside |
12"-24" |
|
Max. wheel diameter: |
1150mm(44") |
|
Max. wheel width/turntable: |
410mm(16") |
|
Max. wheel width/bead- breaker: |
360mm |
|
Bead-remover cylinder (force at 10 bar) |
2500Kg |
|
Operating pressure |
8-10bar(145Psi) |
|
Power supply |
110-415V |
|
|
1ph / 3ph |
|
Motor power |
0.75-1.1Kw |
|
Net weight: |
260Kg |
|
Noise |
<70dB |
|
Packing outside dimension: |
1310*1000*1000mm |
|
FCL |
24pcs/20” 48pcs/40” |
