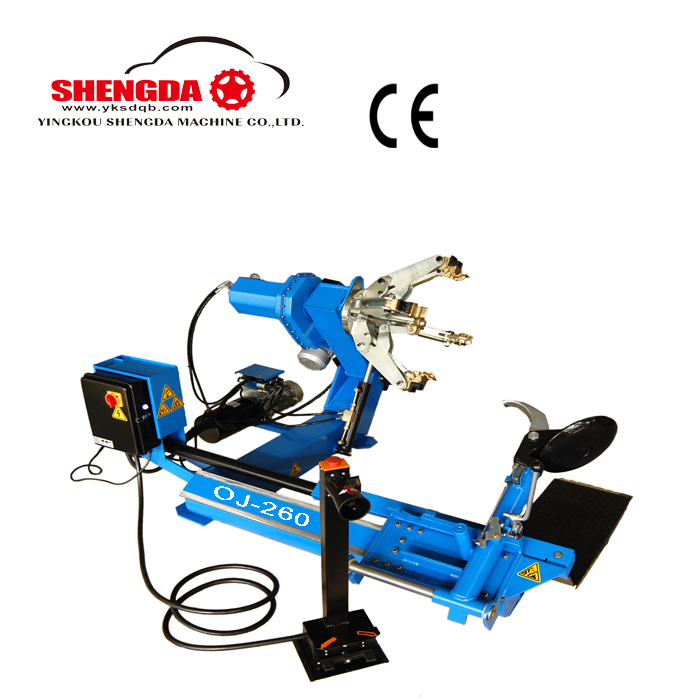

1. Semi –Automatic Tire Changer
2. Machine with strong capacity hydraulic system.
3. Movable low voltage control Motor, operation 24v,safety and stable

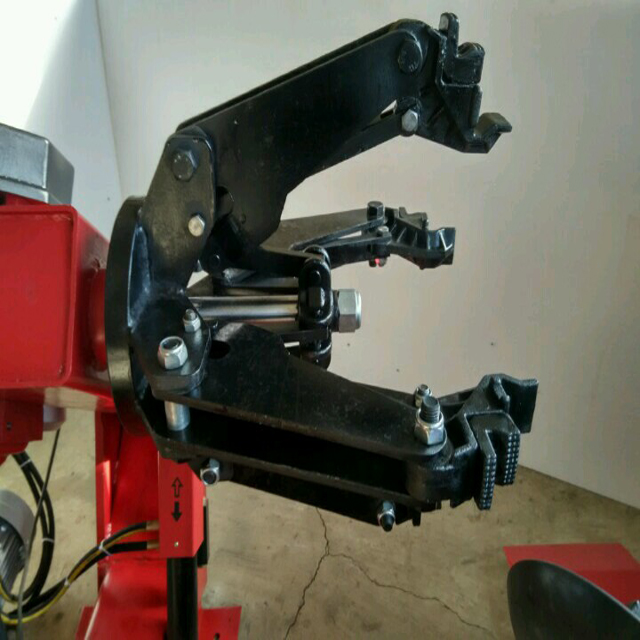

4. Lifting arm and universal chuck are all driven by hydraulic
5. It is use for 14-26” all bus, truck, agriculture tyre.
Technical data: |
OJ-260 |
|
Semi-Automatic |
Handles wheels from |
14"-26" |
Max. wheel diameter |
1600mm(62") |
Max. wheel width |
780mm(31") |
Max. wheel weight |
500Kg |
Bead-remover |
2500kg |
Motor power |
2.2Kw |
Hydraulic pump motor |
1.5Kw |
Power supply |
380V-415V |
Operation pressure |
130bar |
Net weight |
590Kg |
Packing outside dimension |
2045*1685*960mm |
Noise |
<70dB |
oil cylinders |
3pcs |
FCL |
6pcs/20” 14pcs/40” |
