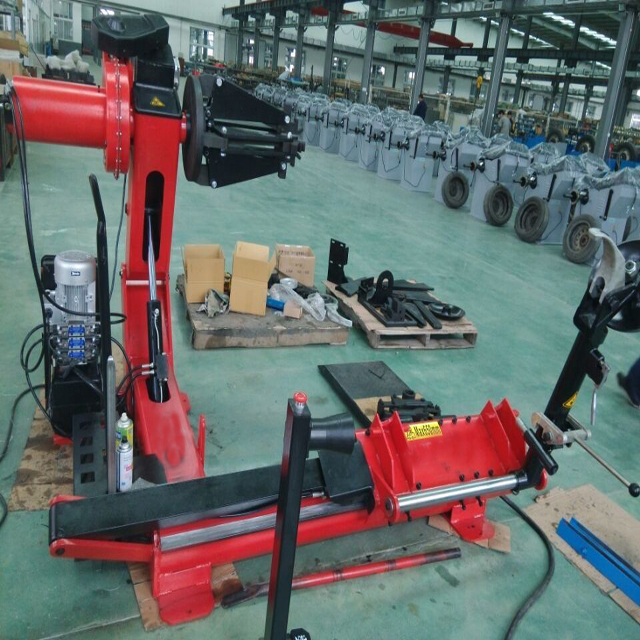

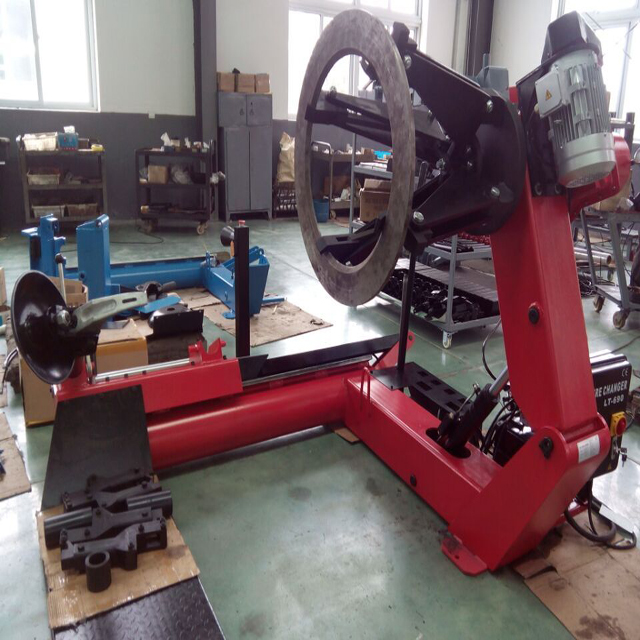

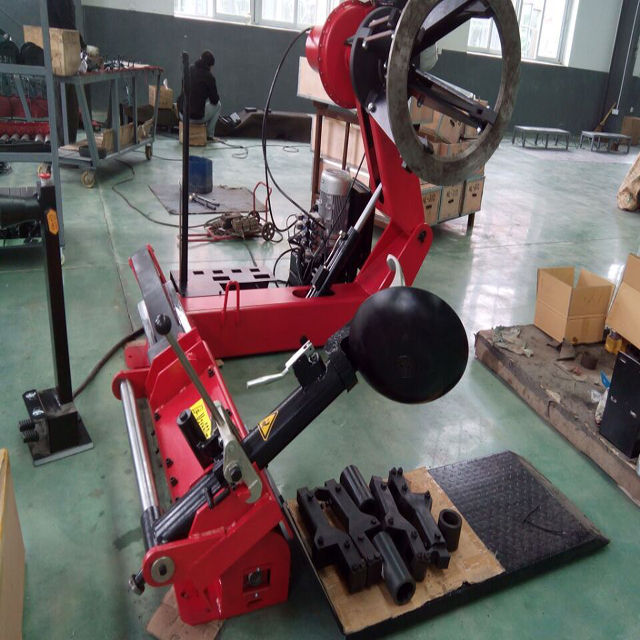

1. 14-56" Tire Changer
2. Machine with strong capacity hydraulic system.
3. Movable low voltage control Motor, operation 24v,safety and stable
4. Lifting arm and universal chuck are all driven by hydraulic
5. It is use for 14-56” all bus, truck, agriculture tyre.
|
Standard Features: |
OJ-560 |
|
Rim Clamp |
14-56” |
|
Max Wheel Diameter: |
2300mm |
|
Max Wheel Width |
1200mm |
|
Max Wheel Weight |
2000Kg |
|
Operating Pressure |
0-16MPA |
|
Power Supply |
380v |
|
3ph |
|
|
Motor Power |
3.3Kw |
|
Net Weight: |
1200Kg |
|
Packing Size |
2300*2130*1150mm
|
|
FCL |
4pcs/20” 10pcs/40” |
